Osburn 2000 Fireplace Insert OB02016

Alternative Views:

Sale Price Ends MONDAY 11/18/24: $3,099.00

We are here to help! Call (646) 657-8150, email: [email protected]

Product Code: OSBURN-2000-INSERT-OB02016

Free Blower:

Free Shipping:

Osburn Door Overlay (required)*:

Osburn Trim Kit (required)*:

Osburn Faceplate (required)*:

Faceplate:

Heat Shield:

Venting:

Fire/Safety Screen:

Venting Accessories:

Insulation kit:

$125 Off Any Chimney Liner Kit

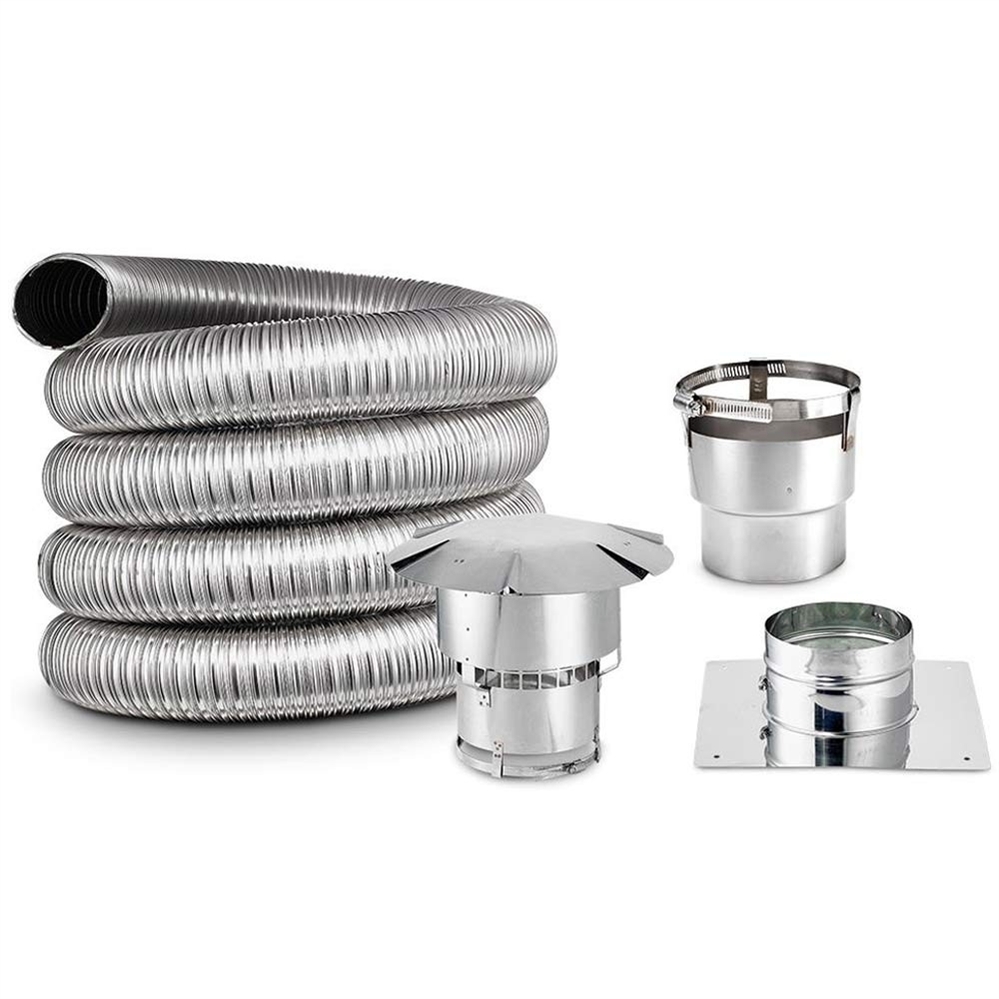

Chimney Liner Kit:

Qty:

Specifications

Technical Specs

Extended Information

500-2100 sq.ft., 20" log, 75,000 BTUs, 77.2% efficiency, 2.4 cu.ft. fire box, 421 lbs

Osburn Fireplace Insert 2000 OB02016

PRODUCT SPECIFICATIONS

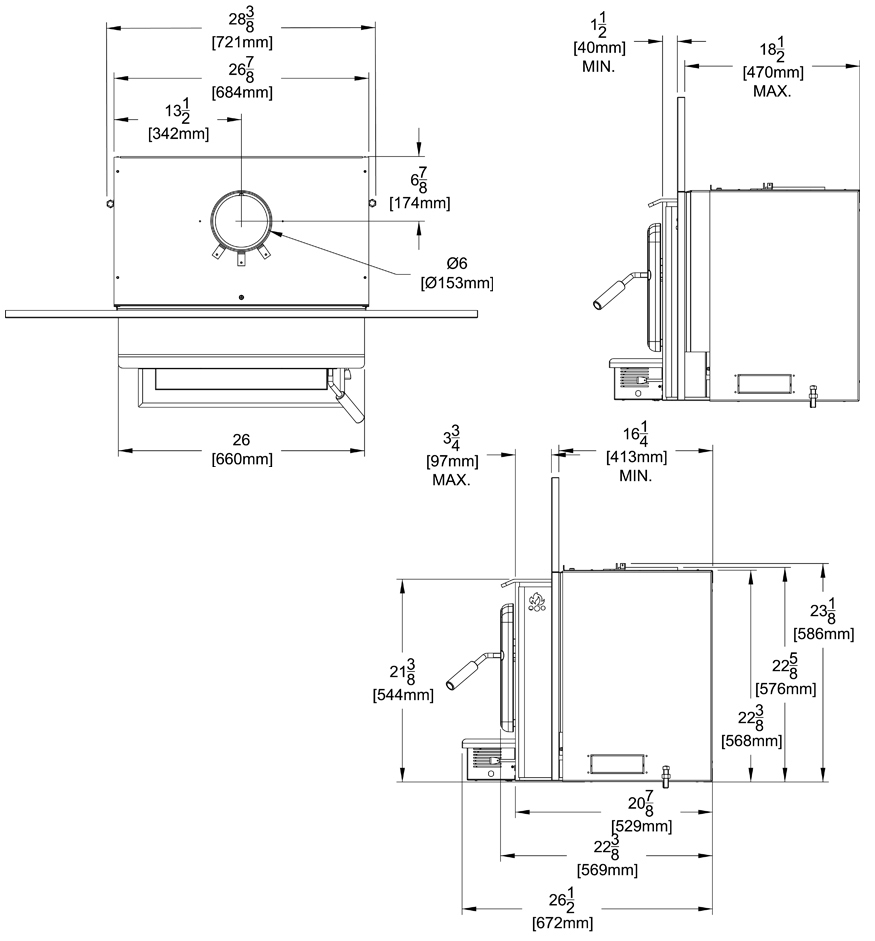

Firebox – dimension (Height) : 11 7/8"

Firebox – dimension (Width) : 21"

Firebox – dimension (Depth) : 16 3/4"

Overall dimension (Height) : 23 1/8"

Overall dimension (Width) : 28 3/8"

Overall dimension (Depth) : 26 3/8"

Door opening – dimension (Height) : 9"

Door opening - dimension (Width) : 17 1/2"

Maximum log length : 20"

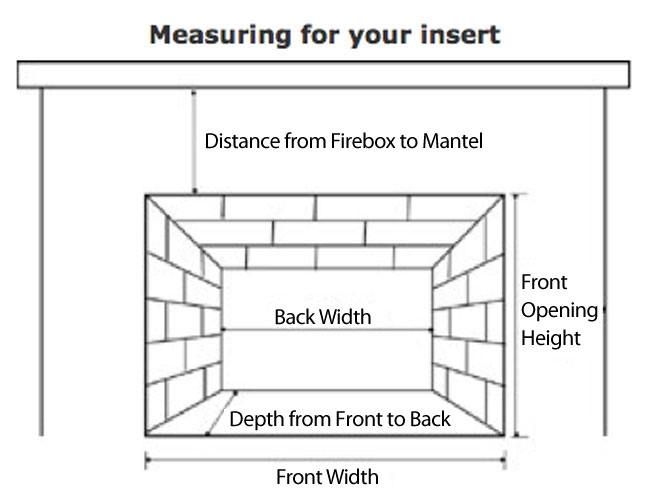

Fireplace opening – minimum (Height) : 23 3/8"

Fireplace opening – minimum (Width) : 28 7/8"

Fireplace opening – minimum (Depth) : 15 3/4"

Weight : 421 lb (191 kg)

Log positioning : Over width

Maximum heat output (dry cordwood) : 75,000 BTU/h (22.0 kW)

Clearance – top (measured from the platform on which the appliance is installed) : 84"

Centre line of flue outlet to the back : 6 7/8"

Centre line of flue outlet to the side : 13 1/2"

Canadian standard (emissions) : CSA B415.1-10

USA standard (emissions) : EPA Method 28

Canadian standard (safety) : ULC S628

USA standard (safety) : UL 1482, UL 737

Overall heat output rate (max.) : 31,300 BTU/h (9.2 kW)

Overall heat output rate (min. to max.) : 12,500 BTU/h (3.7 kW)

Average CO : 137.4 g/h

Maximum heat output (dry cordwood) : 75,000 BTU/h (22.0 kW)

Steel thickness – body : 3/16"

Type of chimney : CAN/ULC S629, UL 103 HT (2100 °F)

Fuel type : Dry cordwood

Door type : Single, glass with cast iron frame

Glass type : Ceramic glass

Firebox volume (cu. ft.) : 2.4

Glass surface – dimensions (Width X Height) : 17 1/4" x 9 1/2"

Recommended heating area (sq.ft.) : 500 - 2,100

Steel thickness – top : 5/16"

Optimum efficiency : 77.2 %

Average particulate emissions rate : 3.9 g/h

Recommended chimney diameter : 6"

Baffle type : High heat-resistant C-cast

Maximum burn time : 8 h

Warranty : Limited lifetime

Tested and listed as per applicable standards : By an accredited laboratory (CAN/USA)

Minimum clearances to combustibles *

(Data expressed in inches. 1 inch = 25.4 mm)

Clearance – combustible side mantle to unit	12"
Clearance – side wall (room)	16"
Clearance – combustible top mantle to unit	20"
Combustible shelf to unit	22"
Minimum floor protection in front of unit	Canada : 18" USA : 16"

Product Details

Osburn Fireplace Insert 2000 OB02016

Osburn Wood Fireplace Insert 2000 Manual

With its 2.4 cubic foot firebox, the Osburn 2000 insert offers an alternative to the people who love its freestanding counterpart. The two models share the same high quality combustion properties and many of the same features. The Osburn 2000 comes with a standard high-power, heat-activated 120CFM fan strategically positioned to redistribute the heat from the firebox into the room. The 2000 model is designed to receive an optional faceplate that can cover a masonry hearth up to 32 inches (81 cm) high and 50 inches (127 cm) wide. The door overlay is available in black, golden fire brown, gold plated or brushed nickel plated finishes. The faceplate trims are available in black, brassy gold, and nickel.
